Multi Power2

£0.00

Smart, Scalable, Sustainable, Power - Riello Multi Power2 is the evolution of our modular UPS.

Quantity:
Add To Cart

Smart, Scalable, Sustainable, Power - Riello Multi Power2 is the evolution of our modular UPS.




Ashdale are delighted to present our range of Riello Uninterruptible Power Supplies to the Northern Ireland market. In Riello we represent a Global UPS company with full local support. We are an officially certified sales and service partner for Riello UPS. Many systems and accessories in stock in Belfast for immediate dispatch or collection.

Power Range: 500 - 1600 kVA 3:3

Multi Power2 offers higher power density, simpler integration for existing and new installations, and last but not least, enhanced operating efficiency and flexibility that reduces both upfront investment and day-to-day operational costs.

 Risk Free Scalability

Thanks to its smart modular architecture, the system can be adapted to the load demands to avoid any oversizing and provide the best performance in every working condition. Multi Power2 reaches up to 1600 kW in a single UPS and up to 6400 kW with 4 systems in parallel.

Best In Class Efficiency

With new extremely high-density 67 kW power modules, Multi Power2 can achieve efficiency of up to 98.1% in double conversion online mode, providing the best power supply to critical equipment whilst minimising operating costs and energy losses. Efficiency Control Mode ensures high efficiency at all load levels.


Riello UPS Sales and Service Agent

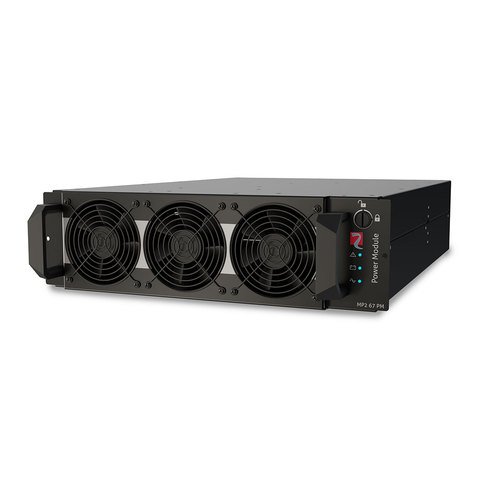

The biggest challenge of our time is sustainability. This is the reason why we developed the Multi Power2 Power Module based on the latest silicon carbide technology (SiC), which reduces cooling requirements whilst enabling more compact, more reliable, and more robust solutions.

The Power Modules could reach an efficiency of up to 98.1% in ON LINE double conversion, providing the best power supply to critical equipment whilst minimising operating costs and energy losses.

High efficiency is achieved even in the case of extremely low loads thanks to the Efficiency Control Mode, where the system will automatically activate only the required number of Power Modules, ensuring the highest efficiency and, at the same time, the required redundancy level.

Multi Power2 can also work in temperatures up to 40°C (without any derating), minimising the need for energy-intensive cooling systems.



Extremely Flexible

The Multi Power2 has been conceived to meet the specific needs of each installation and quickly adapt to any load increase. Thanks to hot-swappable Power Modules, any increase in power can be done while the unit is still working in ON LINE double conversion without any disruption to the load.

All the major components of the UPS are modular and can be easily added to and/or replaced, minimising the site intervention cost whilst avoiding any downtime.

The range incorporates:

  1. MP2: up to 500 kW

  2. M2S: scalable from 1000 kW to 1600 kW



The MP2 chassis can hold up to 8 Power Modules, while M2S has capacity for:

  1. M2S 1000 = up to 15 modules (20 slots in total)

  2. M2S 1250 = up to 19 modules (20 slots in total)

  3. M2S 1600 = up to 24 modules (30 slots in total)



The spare slots are designed to offer users flexibility in terms of redundancy.

Several configuration and frames are also available:

  • PCM: very compact solution with integrated manual bypass.

  • PC0: unit supplied with unique I/O and without switches to simplify the integration with the existing electrical infrastructure and to meet any space constraints.

  • PCS: fully integrated, for a complete, simple and very reliable installation, with main input, bypass, manual bypass and output switches.



Reliable & Resilient

The Multi Power2 is extremely reliable as it is designed to avoid any single point of failure. This principle is applied to all the parts of the unit, even to the internal communication structure, which is completely redesigned and made with two separate and fully redundant high-speed buses.

To provide the highest level of quality and process control, each component of the system, from the modules to the cabinet, is designed and manufactured in Italy. All modules and full units undergo specific tests to verify that each component operates correctly.

All collected measurements and data are analysed to keep improving our products and provide our customers with the most up to date technologies. To enhance the lifespan of the UPS, each module incorporates status counters, as well as temperature and humidity sensors, providing real-time analytics for operators.

Furthermore, thanks to embedded intelligence, power computing capacity, and outstanding connectivity, we can monitor remotely the status of the UPS and provide dynamic and bespoke after sales services.


IMG_9793 (2).JPG

We are a one stop shop for a power protection solution that will give you or your client total peace of mind.

  • The know-how and experience to specify the appropriate solution

  • Handle Logistics of Supply & Installation Installation.

  • Commission the final system

  • Decommission & removal of existing systems

  • Provide 24/365 Contracted Support

  • supply spare parts and batteries


Our technical team are OEM trained and certified so you can trust us to provide the very best support in sales and service.

If you have an application, please get touch we love solving problems !


  • Multi Power2 – from 500 to 1600 kW

  • MP2 500 Power Cabinet

  • M2S 1000 Power Cabinet

  • M2S 1250 Power Cabinet

  • M2S 1600 Power Cabinet
